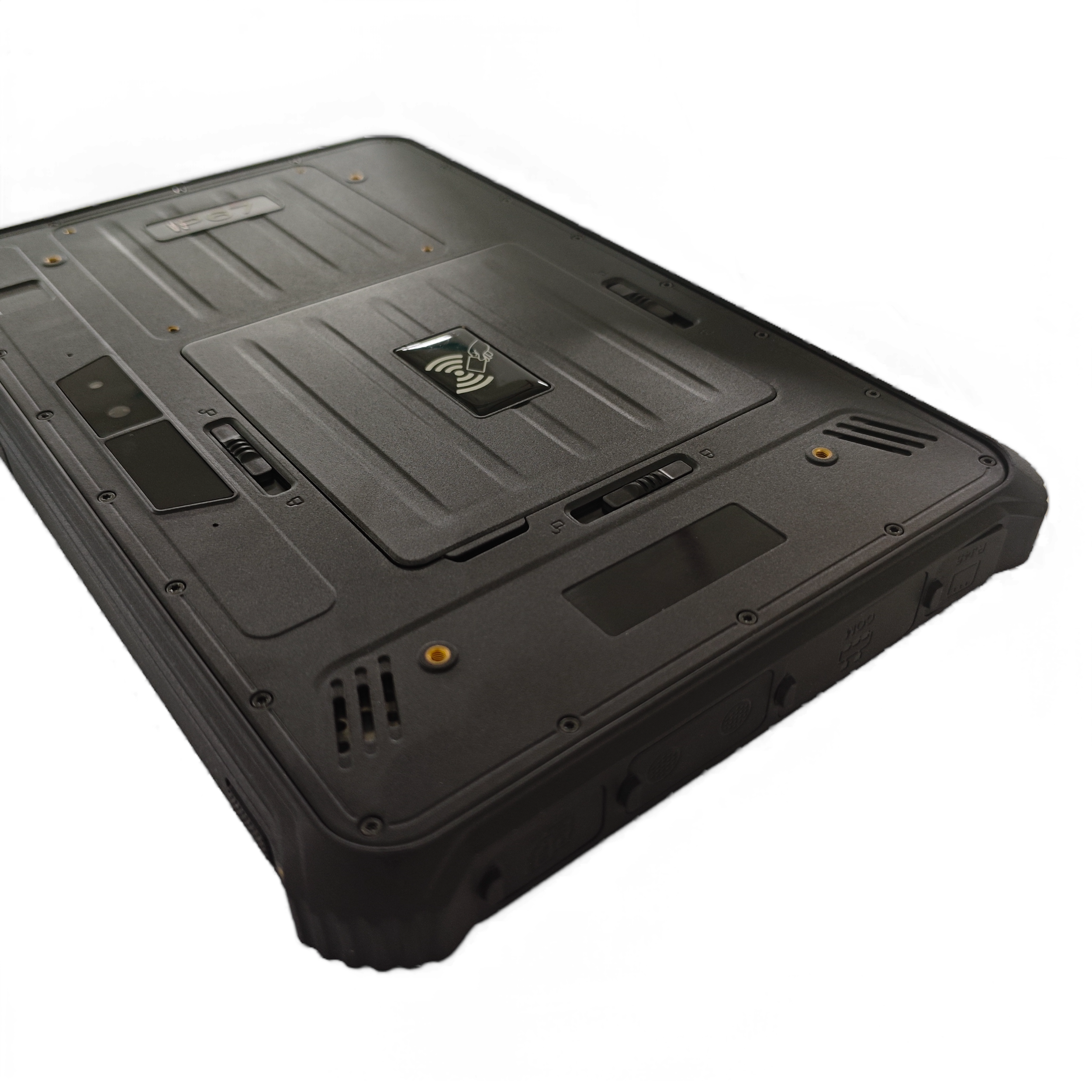

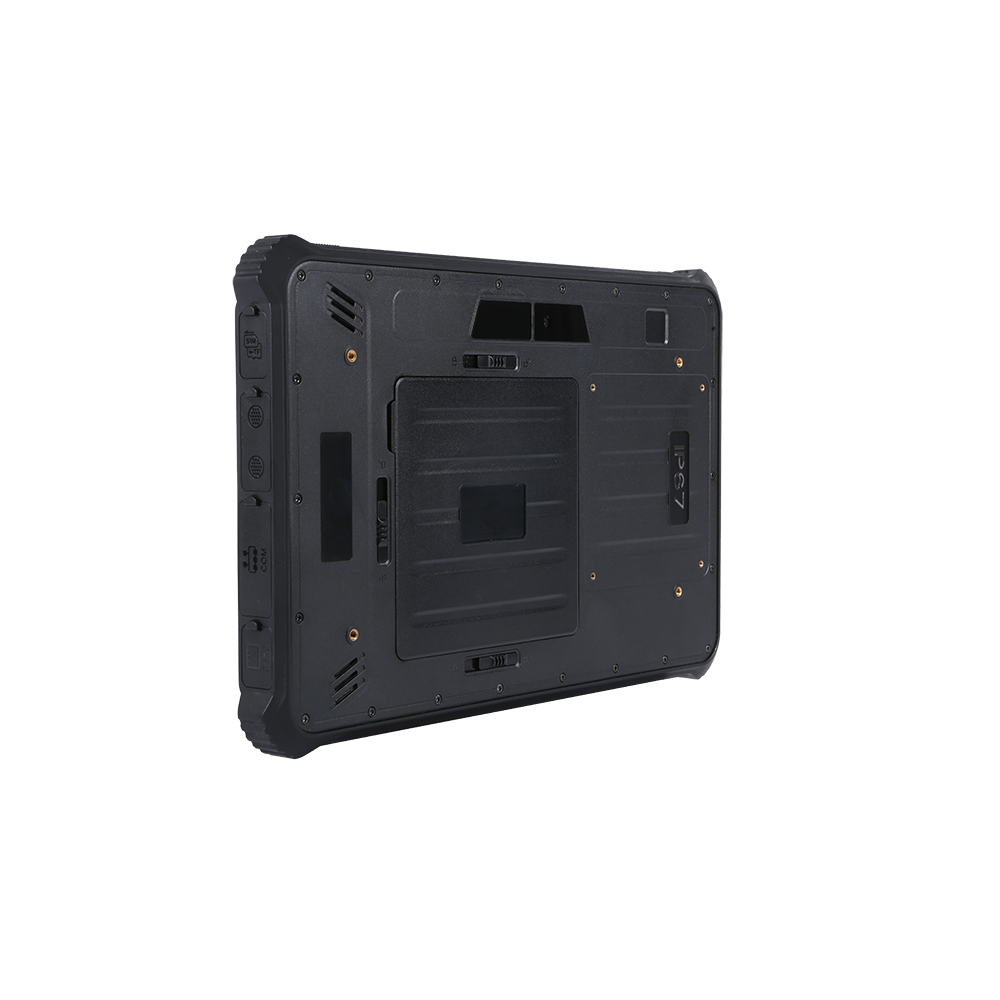

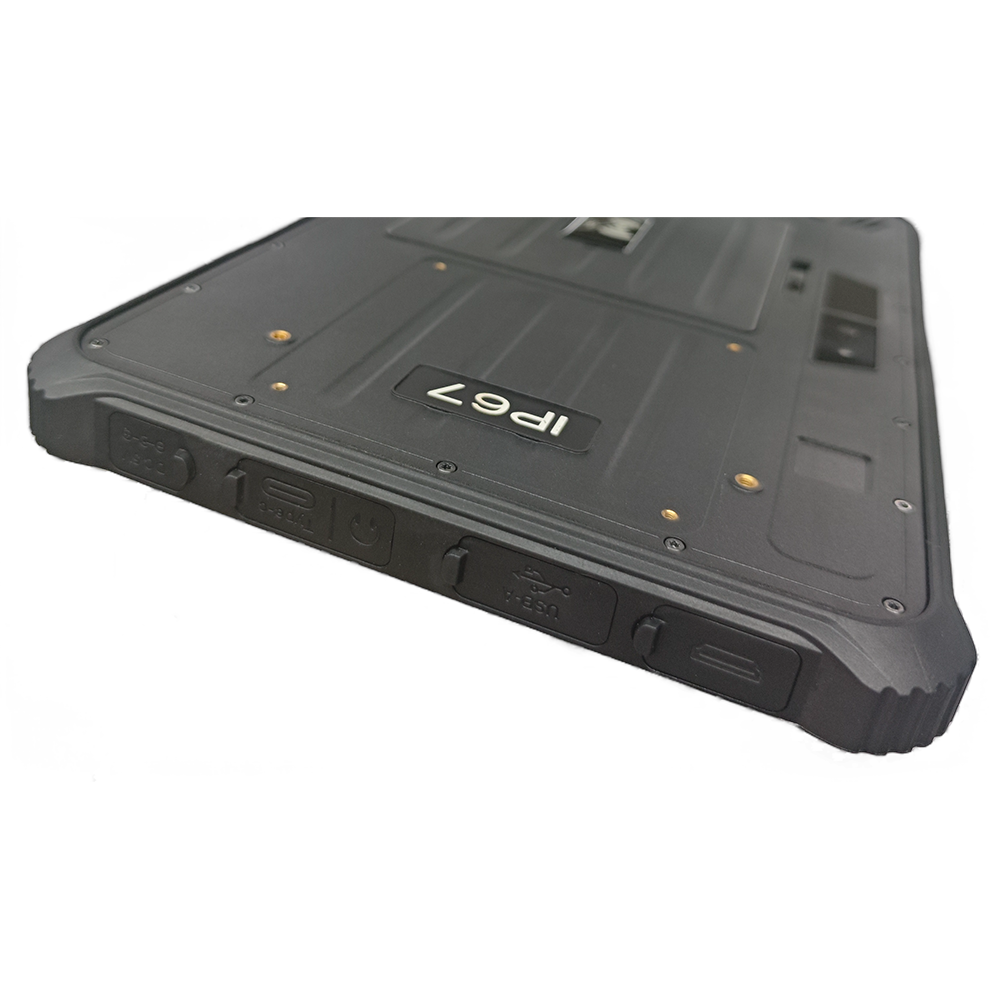

RT-10M
Features
- 10.1'' WXGA (1280 x 800) 450/1000 nits TFT LCD
- MTK MT6771 2.0 GHz
- WiFi 802.11a/b/g/n/ac, Bluetooth v2.1+EDR/v3.0+HS/v4.1 LE, LTE
- Optional 1D/2D Barcode Scanner & NFC/RFID/ID card
- Up to 3 GNSS, GPS+GLonass+Galileo/BD
- RS-232 COM Port + 10/100/1000 GbE RJ45
- Built-in 10000mAh removable battery
- IP67 Compliant, Drop 1.2m
- Android 10 GMS
Get a quote!
Are you interested in this product? Just leave us a message and we will get in contact with you.
| System Hardware | |
|---|---|
| CPU | MTK MT6771 Octa-core 2.0GHz |
| Memory | 4GB, optional 6GB (MOQ required) |
| Storage | 64GB, optional 128G (MOQ required) |
| Camera | 5MP front camera with fixed focus, 13MP rear camera with auto focus and LED light |
| Speaker | Dual speaker, 1.2W/8Ω |
| MIC | Dual MIC |
| Earpiece | Waterproof earpiece |
| Button | Power button, Volume +/-, Customize function key Barcode scanner shortcut key |
| LED Indicator | Charging indicator |
| Sensor | Gsensor, Gyroscope, Ecompass, Distance sensor, Motor, Light sensor |
| Display | |
| LCD Type | 10.1" TFT-LCD |
| Max. Resolution | 1280*800, Optional 1920*1200 800cd/㎡ |
| Cover Glass | Corning Gorilla Glass III, hardness 7H, light transmittance 85% |
| Luminance | 450 cd/m2, Optional 1000 cd/m2 (1280*800) |
| Touchscreen | 5-Point capacitive touch screen Optional AG+AF or AG+AF+Wet Hand/Glove |
| OS | |
| OS | Android 11 OS with GMS certificate |
| I/O Interface | |
| POGO PIN | 1*POGO PIN(USB+Charging) |
| USB | 1*USB Type C(USB OTG+Charging) 1*USB 2.0, TYPE A |
| Video | 1*mini HD |
| Audio | 3.5mm Headphone Jack |
| DC Jack | 1*DC Jack |
| LAN | 1*RJ45 |
| COM Port | 1*RS232 |
| SIM Card Slot | 1*Micro SIM Card Slot |
| TF Card Slot | 1*TF Card Slot, up to 256GB |
| Aviation Plug | 2x Expansion 1*CAN |
| Communication | |
| WWAN | GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 TD-SCDMA:B38/B39/B40/B41 CDMA2000 LTE-FDD: B1/B2/B3/B4/B5/B7/B8 LTE-TDD: B38/B39/B40/B41 |
| WIFI | 802.11a/b/g/n/ac, 2.4G+5G Dual-band WIFI |
| Bluetooth | Bluetooth v2.1+EDR/v3.0+HS/v4.1 LE |
| GNSS | MT6631 GPS+BD+GLonass |
| Extended Functions | |
| NFC | 13.56MHz, support 14443A/14443B/15693 |
| RFID | Optional RFID/HF RFID/UHF RFID |
| ID Card Recognition | Optional ID card recognition module |
| Barcode Scanner | Optional 1D/2D barcode scanner, 2 choose 1 |
| Power | |
| Power Input | 5V DC Input, 5V/3A power adapter Optional 5～24V DC power input, no built-in battery power supply |
| Battery | 10000mAh, removable 3.8V Li-Ion battery |
| Battery Life | 10 hours (Play 1080P video under LCD 50% backlight) |
| Environment | |
| Drop | 1.2m free fall to the wooden floor |
| IP Rating | IP67 |
| Operating Temp. | -10℃～50℃ |
| Storage Temp. | -30℃～70℃ |
| Certificate | |
| Certificate | CE、ROHS、UN38.3、MSDS、IEC62133 |
| Mechanical | |
| Dimension (W x H x D) | 277*182*21.5 mm Optional UHF RFID module, thickness increases 9.5mm |
| Weight | 1.15kg |
| Color | Black |
| Accessory | |
| Accessory | Hand strap, 5V/3A power adapter |
| Optional Accessory | Ofiice docking, Vehicle stand, Vehicle charger, Passive stylus pen, Type-C data cable, Type-C OTG cable,USB-DC cable |
